ADA-Compliant Glass Systems for Senior-Living Facilities

Yet in a senior-living facility, a panel that is secure in an influence test can still tighten a wheelchair opening, block a handrail grasp, produce a low-contrast collision danger, or place the mirroring surface past a seated resident’s valuable reach. So why does the industry maintain offering “ADA glass” as though conformity arrives in a cage?

I have a blunt response: hassle-free marketing. ADA-compliant glass systems are not defined by one glass type, one density, or one qualification mark. Compliance arises from the installed system– pane, frame, hinge, take care of, suppress, assistance, wall surface, floor, clear room, and mounting elevation– working together under the regulating rules.

The scale of the problem is scooting. A united state Demographics Bureau release dated June 27, 2024, put the populace age 65 and older at regarding 59.2 million in 2023, up 9.4% from 2020. And the CDC’s September 1, 2023 Morbidity and Mortality Weekly Report found that 14 million older grownups, or 27.6%, reported a fall in 2020; 38,742 died from unintended drops in 2021. The CDC approximated about $50 billion in yearly clinical expenses from older-adult drops.

Those numbers do not confirm that glass triggers falls. They do show that little design mistakes rest inside a huge exposure pool.

The Industry’s Favorite Half-Truth: “ADA Glass” Is a Product

그렇지 않습니다.

The 2010 ADA Requirements regulate access: clear widths, maneuvering room, reach ranges, door pressure, limits, shower geometry, mirror placement, and handrail details. The Customer Item Safety and security Payment’s 16 CFR Part 1201 regulates impact safety and security for defined architectural glazing products, consisting of shower doors and enclosures. The in your area embraced building ordinance handles architectural loads, guards, fire-rated problems, and extra safety-glazing areas.

No federal “ADA-approved glass” label connections those layers with each other. A producer may certify a lite to a safety-glazing criterion; it can not certify a whole room it did not style, install, and field-measure.

That distinction has teeth. In a June 3, 2024 contract, the U.S. Division of Justice called for Marriott International to boost how available areas were identified and reservable, track grievances, call for resorts to report minimum-room compliance, and pay a $50,000 civil fine. The situation fixated bookings, not glass. But the caution is straight pertinent: calling something easily accessible produces an expectation that the real configuration can be recognized, booked, and utilized.

Right here is the difficult reality: a pass in one row does not make up for a failure in an additional.

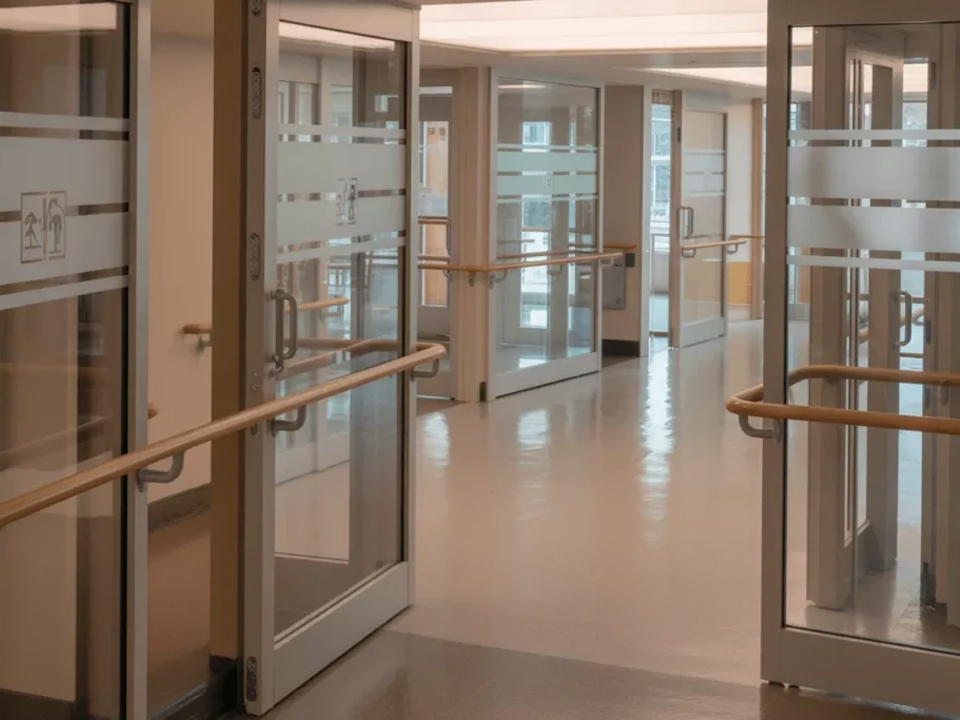

Begin With the Homeowner’s Route, Not the Pane

When I examine available shower room glass systems, I start with a body moving via area. A resident approaches with a mobility device, walker, cane, weak hold, lowered contrast sensitivity, or an aide at one shoulder. The glass is almost the last choice.

Map the sequence: hallway, door method, latch, clear opening, transforming area, fixture transfer, grab bar, shower seat, controls, and leave. After that overlay door swings, towel bars, hinges, stabilizer bars, and flooring shifts. Why? Because frameless hardware has a habit of inhabiting the exact inches that schematic illustrations treat as empty.

Make use of the worst credible problem, not the prettiest rendering. Procedure clear size in between the face of a door opened 90 levels and the stop. Check sticking out pull deals with against steering clearance. Confirm that a taken care of shower panel does not consume the surrounding 30-by-60-inch clearance. And version an assistant’s placement; code minimums can still generate unpleasant treatment distribution.

This is where I part business with lowest-bid reasoning. Saving a slim strip of floor tile or one customized joint is incorrect economic climate when the treatment needs remaking a toughened up panel– after solidifying, openings and notches can not be casually recut.

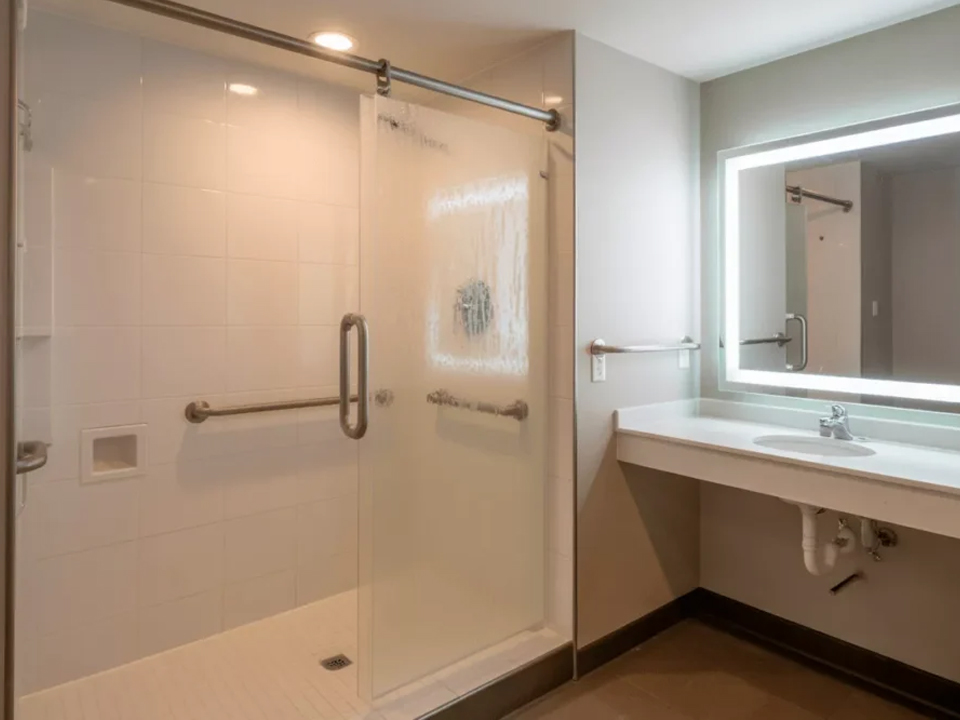

Shower rooms: The Inches That Make A Decision Whether the System Works

For doors on an accessible course, the standard is a 32-inch minimum clear opening. A threshold is usually restricted to 1/2 inch, with the part over 1/4 inch beveled no steeper than 1:2. Inside pivoted doors and gliding or hinged doors are usually restricted to 5 lbf (22.2 N) opening pressure under ADA Section 404, leaving out the pressure required to retract latches and based on details exceptions such as fire doors.

That is the route into the room. Shower areas add their own geometry:

• A transfer shower is 36 by 36 inches clear inside, with a 36-inch minimum entry and the called for nearby clearance.
• A standard roll-in shower goes to the very least 30 by 60 inches clear inside, with a 60-inch minimum opening across the face and a 30-by-60-inch adjacent clearance.
• An alternate roll-in shower is 36 by 60 inches minimum, with a 36-inch minimum entry at one end of the long side.
• Shower limits are typically limited to 1/2 inch; a 2-inch optimum exemption can apply in certain changes where decreasing the limit would interrupt structural floor-slab reinforcement.

Do not translate those numbers into “order a 36-inch door.” Small glass dimension, harsh opening, frame bite, hinge geometry, seals, strike clearance, and the door’s 90-degree position all modification useful width. The proper number is the finished, unobstructed opening in the authorized setup.

For wheelchair-accessible shower units, I favor a full-size equipment mockup prior to launch. Test opening pressure with gaskets mounted, not with a nude rest on a bench. Check the sweep over the actual flooring slope. Test the pull with a closed clenched fist. And make the drainpipe technique fix water control without reconstructing an aesthetic that defeats the available route.

Product selection still matters. Low-iron ultra-clear toughened up glass can minimize the environment-friendly cast of traditional soda-lime glass and enhance aesthetic quality in showers and dividings, however clearness is not collision comparison. Include noticeable signs where required. For curved screens or rounded showering formats, made-to-order bent solidified glass can lower sharp strategy transitions, yet radius resistances and hardware alignment need to be dealt with prior to fabrication.

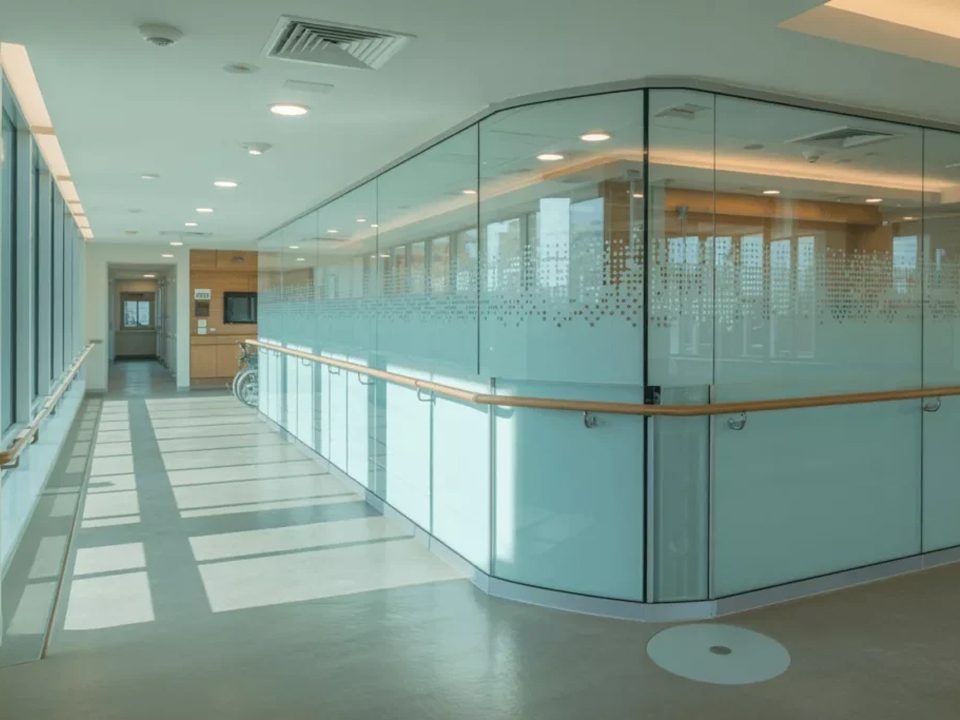

Glass Barriers: The Guard Is Not the Hand rails

This error is anywhere. A glass guard stops an autumn from a side; an ADA handrail supplies a graspable, continuous assistance. They may share posts or engineering, yet they do various jobs.

Where an ADA handrail is required, the top of its gripping surface area is generally 34 to 38 inches (865 to 965 mm) above the walking surface area, staircase nosing, or ramp surface area. Clearance from a nearby surface area is at the very least 1 1/2 inches (38 mm). The hold needs to remain continuous, non-rotating, devoid of sharp or unpleasant aspects, and appropriately extended or returned where the Specifications require it.

A broad metal cap atop glass is not automatically a handrail. Nor is the leading side of a glass panel. If a bracket, glass clamp, attractive collar, or return disrupts the power grasp, the detail might stop working although the guard estimation passes.

For glass guards, I would not accept the expression “1/2-inch tempered” as a total spec. The designer and authority having territory should fix the adopted code edition, style lots, support condition, post-breakage performance, cap or hand rails requirement, and whether a laminated heat-treated make-up is compulsory. In numerous present code paths, monolithic solidified glass is not the default solution for guards.

Curved designs require much more technique. Rounded tempered glass for balustrade infill might support smoother blood circulation and fewer sudden edges, but the bend distance, lamination usefulness, side top quality, visual distortion, base shoe, supports, and different graspable rail belong in one collaborated shop-drawing bundle.

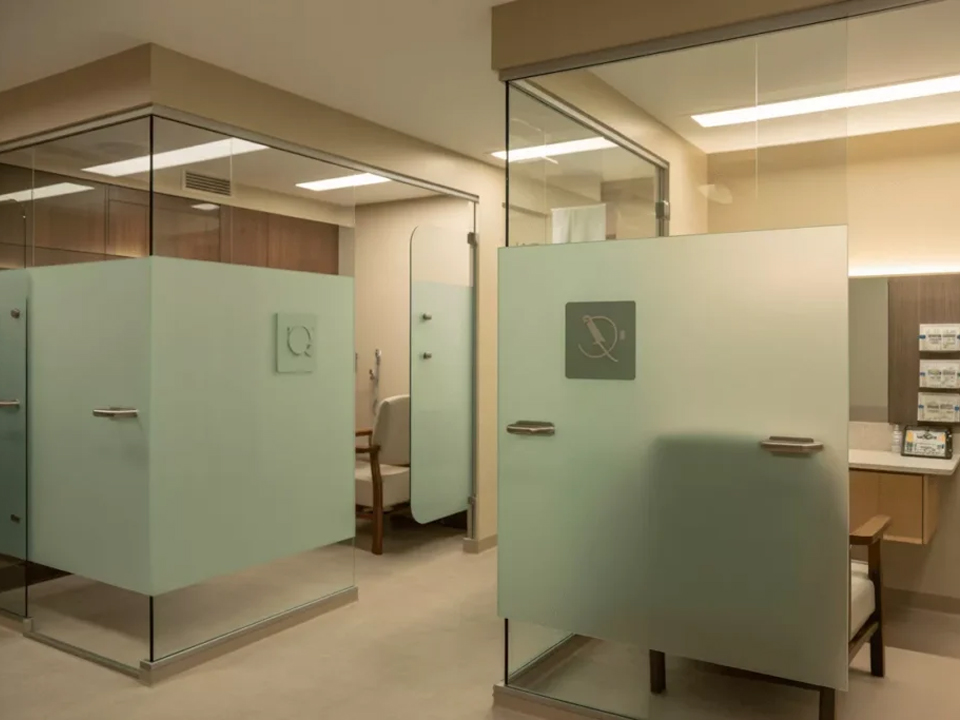

Partitions: Presence, Personal Privacy, Acoustics, and Dementia-Sensitive Style

Clear glass can make an usual area really feel bigger. It can additionally disappear.

The ADA Criteria do not supply an universal dish for symptom bands on every transparent dividers, yet neighborhood codes might impose noting guidelines, and risk monitoring need to go additionally where locals have low vision or cognitive disability. I favor two apart, high-contrast cue zones that continue to be visible against both light and dark histories, rather than a fragile frosted logo placed at one designer-approved eye level.

Privacy is equally specific. Complete frost can eliminate orientation cues; a slim facility band can expose seated residents; reflective films can turn a nighttime corridor into a mirror. Mock up the actual lighting at morning, afternoon, and night. Include the resident’s seated eye height. Consist of a pedestrian coming close to obliquely.

For activity spaces, assessment spaces, registered nurse stations, and living room, clear acoustic laminated glass for indoor dividers can incorporate daytime with speech depletion and post-breakage retention. However “acoustic glass” without a total assembly score is sales fog. Ask for the checked glass make-up, structure, seals, perimeter conditions, and target STC or OITC; a high-performing lite in a dripping door frame will certainly disappoint.

Chemistry matters below. Traditional soda-lime-silicate glass is largely silicon dioxide (SiO TWO), while trace iron oxides such as Fe ₂ O ₃ contribute the acquainted environment-friendly tint. Laminated settings up add an interlayer– commonly polyvinyl butyral (PVB) or an ionoplast– that can preserve fragments after breakage. Those products transform optics, side level of sensitivity, dampness resistance, stiffness, acoustic reaction, and construction preparation. They do not, on their own, create ADA conformity.

Mirrors: The 40-Inch Mistake That Makes It Through Too Many Reviews

ADA Area 603.3 is plain: over a lavatory or kitchen counter, the lower edge of the showing surface is 40 inches (1,015 mm) maximum over the completed floor. A mirror not over a bathroom or countertop uses a 35-inch (890 mm) optimum.

Mirroring surface. Not structure.

A thick structure, bevel, lighted border, demister zone, backsplash, or elevated countertop can transform a nominally correct altitude into a failed setup. Action from completed floor to the very first usable reflective pixel, so to speak. If the mirror is slanted, confirm actual usability and outcropping; tilt is not a magic waiver.

I additionally recommend a seated-view mockup for resident rooms, also when the drawing satisfies 40 inches. Take into consideration face illumination, glare from ceiling LEDs, sink depth, faucet forecast, and whether a medicine-cabinet door can be run without tight grasping, pinching, or twisting. Conformity is the floor. Self-respect sits higher.

A Practical Glass Selection Matrix

Density can not be picked from this write-up; panel dimensions, sustains, openings, loads, warmth treatment, interlayers, and the taken on code all issue. Still, the following matrix gives a regimented beginning factor for layout and purchase.

ADA is just one part of resident comfort. In exterior lounges or conditioned connectors, triple-glazed Low-E protecting glass can lower cold-surface discomfort and condensation threat, while architectural polishing curtain-wall glass can integrate laminated, protecting, glare-control, and acoustic alternatives. Those are envelope choices. Maintain them out of the ADA case unless they affect an accessible path, entryway, control, or functional space.

Exactly How to Style ADA-Compliant Glass Systems for Elder Living

I use a ten-step release series. It is slower theoretically and much faster on website.

1. Call the governing tenancy and legislations. Senior houses, aided living, proficient nursing, memory treatment, and public common locations can set off different mixes of ADA, Fair Real Estate Act, Area 504, state availability policies, licensing guidelines, and embraced codes.
2. Freeze the accessible path. Measurement doors, approaches, transforming areas, transfers, limits, slopes, and fixture clearances prior to choosing glass hardware.
3. Identify every lite. Tape-record area, dimension, safety-glazing classification, fire problem, guard condition, personal privacy requirement, acoustic target, and direct exposure to water or effect.
4. Different guard from hand rails. Attract the graspable imprison area, consisting of elevation, clearance, brackets, extensions, returns, and changes.
5. Coordinate hardware in three measurements. Joints, pulls, headers, channels, clamps, towel bars, and stabilizers have to appear on the ease of access strategies– not just on the glass store drawings.
6. Specify efficiency, not adjectives. Replace “ADA glass,” “heavy duty,” and “acoustic” with measurable geometry, pressure, test standard, makeup, tolerances, and documentation.
7. Prototype the dangerous bays. Build one shower, one guard change, one transparent-door problem, and one mirror altitude using final surfaces and hardware.
8. Step after finishes. Tile, wall panels, gaskets, base footwear, floor covering, and sealant joints take in space. Area dimensions have to reflect the completed problem.
9. Hold a worked with launch. Architect, ease of access professional, architectural designer, equipment consultant, glass fabricator, installer, and operator needs to authorize off prior to toughening up or laminating starts.
10. Payment with tools. Make use of a tape, degree, force scale, light meter where glow is challenged, and a strike list that mentions the real need.

What is the best ADA-compliant glass system for assisted-living centers? The one whose weakest user interface has currently been discovered in the mockup.

The Submittal Plan I Would Decline– and the One I Would Approve

I would deny a plan that claims “toughened up safety glass, ADA compliant” and stops there. It conceals the questions that cause change orders: certified to which arrangement, tested in which cosmetics, mounted at what clear opening, sustained by what hardware, and determined from which completed surface?

An approvable plan must consist of:

• A room-by-room glass schedule with unique lite identifiers.
• Dimensioned plans and elevations tied to finished-floor information.
• Glass kind, nominal thickness, warmth therapy, interlayer type and density, layer surface area, edgework, openings, notches, and tempering or lamination series.
• Safety-glazing classification and permanent-label demands.
• Guard computations and anchor information when appropriate.
• Hardware model, coating, operating pressure data, mounting height, and required clearances.
• Mirror dimensions gauged to the reflecting surface.
• Shower opening measurements shown in the door’s usable placement.
• Visual-marker and privacy-frit artwork with elevations and comparison intent.
• Field-measurement responsibility, resistances, substitute process, and traceability to crates and tags.

And another point: protect the accepted submittal. Facilities teams will change broken panels years later. A generic invoice is not nearly enough to recreate an examined, worked with setting up.

Regularly Asked Questions

What makes a glass system ADA compliant?

An ADA-compliant glass system is a set up setting up whose clearances, reach arrays, running pressure, thresholds, projections, handrail geometry, and mirror height please the applicable 2010 ADA Specifications, while its glass, hardware, anchors, and guards separately please the adopted building regulations and safety-glazing regulations. No solitary pane gains that condition alone.

The final judgment relies on occupancy, location, scoping, neighborhood code adoption, and field conditions. Validate the setting up with the task engineer, availability specialist, engineers, and authority having territory.

Does the ADA call for solidified or laminated glass?

The ADA does not prescribe toughened up or laminated glass; it controls ease of access, while 16 CFR Component 1201, the taken on building ordinance, ANSI Z97.1, project specifications, and the authority having jurisdiction figure out whether an opening requires safety and security glazing and which tested make-up serves. Shower enclosures are Group II items under the federal glazing rule.

Tempered glass breaks into fairly little particles however sheds the opening when it fails. Laminated glass can maintain pieces on an interlayer. The job’s risk, support, post-breakage demand, and code course make a decision between them or require a consolidated make-up.

What are the ADA measurements for wheelchair-accessible shower enclosures?

A wheelchair-accessible shower room need to protect the area and entrance measurements for its specified shower kind: 36 by 36 inches for a transfer shower, at the very least 30 by 60 inches with a 60-inch opening for a conventional roll-in shower, or 36 by 60 inches with a 36-inch opening for an alternative roll-in shower.

Those are not glass-order measurements. Developers must also coordinate surrounding clearance, seats, grab bars, controls, threshold, door swing, seals, frames, and equipment so the finished enclosure maintains the required usable room.

Exactly how high should an ADA-compliant washroom mirror be?

An available mirror over a lavatory or kitchen counter have to position the lower edge of its reflecting surface area no greater than 40 inches above the finished floor, while a compliant mirror installed elsewhere must place that reflecting side no greater than 35 inches above the ended up flooring. The structure side is not the measurement point.

Backsplashes, brightened borders, bevels, and decorative frames should be included in the altitude. A full-scale seated-view test is inexpensive and usually discloses glow or blocked sightlines that a dimension alone misses.

What are the best ADA-compliant glass systems for assisted-living facilities?

The best ADA-compliant glass systems for assisted-living centers are project-specific settings up that incorporate validated accessible geometry with Category II shower safety and security glazing, laminated guard make-ups where the embraced code requires them, low-force equipment, noticeable dividers signs, controlled glare, rounded edges, and recorded fabrication tolerances. “Ideal” is gauged after installment, not in a magazine.

For a lot of projects, the winning method is a worked with household of shower, guard, dividers, and mirror details rather than one glass item pushed into every problem.

Can a glass guard double as an ADA hand rails?

A glass guard can integrate an ADA hand rails just when a different continual gripping surface satisfies needed elevation, clearance, cross-section, expansion, return, and obstruction rules; the glass cap or guard top must never ever be thought certified merely since an illustration labels the setting up “barrier.” Guard conformity and handrail conformity require separate checks.

Ask the structural designer to make the guard and the engineer or accessibility specialist to confirm the grip geometry. Then work with both on the very same store drawing, consisting of every bracket and change.

Stop Acquiring Glass by Square Foot

Send out the fabricator a code-informed glass routine, completed measurements, equipment set, safety and security classification, privacy and acoustic targets, and accepted mockup– not an illustration with “ADA” typed in the margin. Request a coordinated construction review before release, after that field-test the installed assembly.

That is the call to activity. Procedure first. Buffoon up as soon as. Purchase the system that locals can in fact make use of.
