Glass moves silently.
That is the part several purchasers, specialists, and also a few salespeople still decline to state aloud: a protected glass device is not a rigid brick of openness; it is a closed pressure chamber made from versatile sheets, edge seals, gas, spacers, finishings, and hope.
So yes– why would not it relocate?
The short solution is uneasy: IGU panes can disperse sufficient to touch each other, especially in big units, narrow cavities, thin glass builds, altitude changes, temperature level swings, or poorly specified spacer systems. The aesthetic clue is frequently a round rainbow pattern near the facility of the glass, frequently called Newton rings. Sector guidance describes this as a condition where large IGU panes may be displaced by air pressure up until they touch between, producing tinted bands at the center of the unit.
And below is my hard point of view: many “glass top quality issues” are not actually glass high quality complaints. They are requirements failures wearing a rather Low-E label.

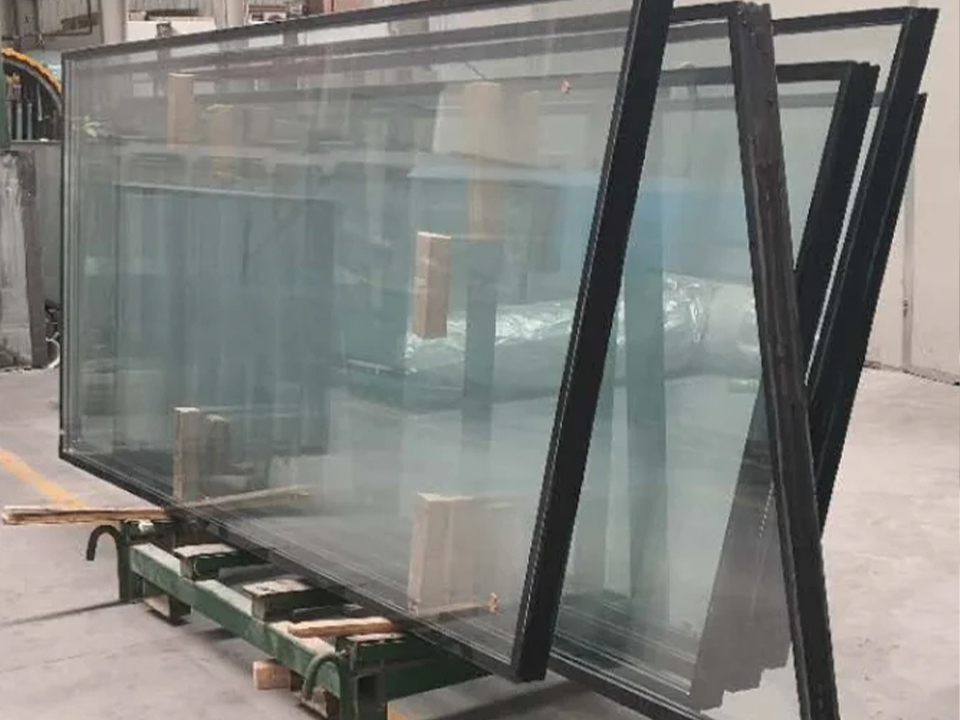

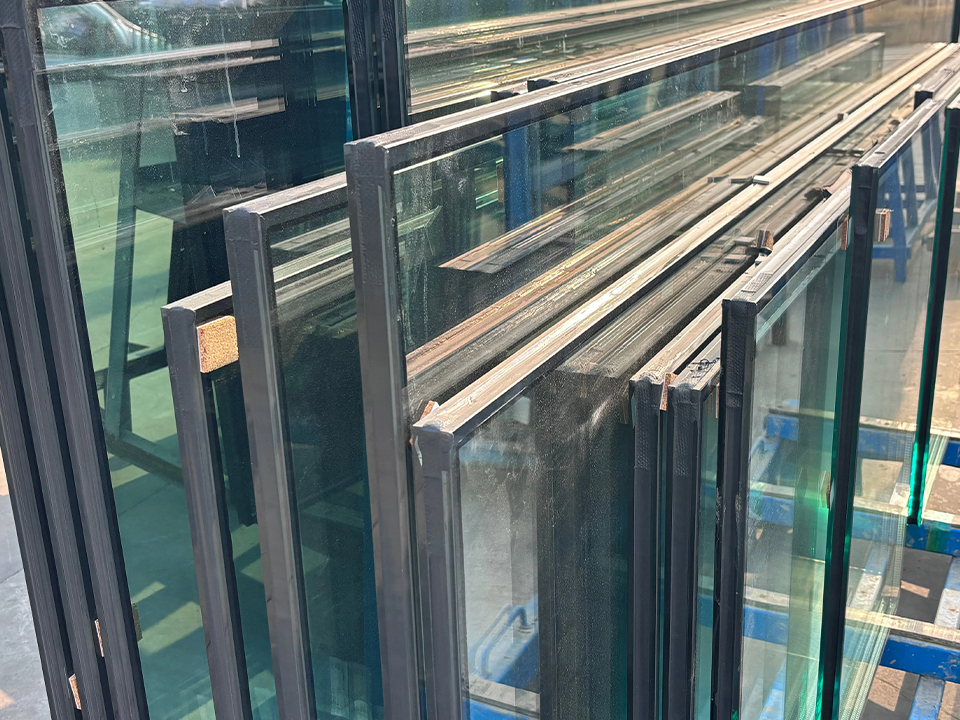

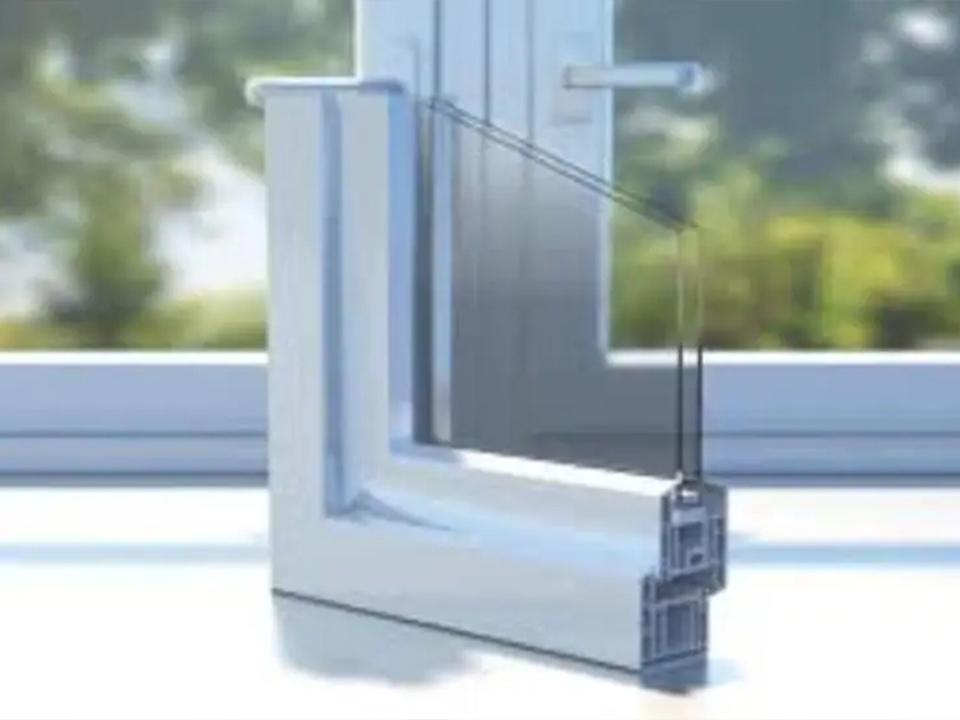

An IGU is usually two or even more glass panes separated by a spacer, secured at the side, and full of air, argon, krypton, or an additional gas mix. Vitro’s 2023 IGU education material determines the spacer, main seal, second seal, and desiccant as core performance elements, which is exactly where a lot of real-world problem begins.
Yet the genuine bad guy is pressure differential.
When a protected glass device is secured at the manufacturing facility, the gas inside the dental caries is entraped at that manufacturing facility’s stress, temperature, and altitude. Then the device travels. It obtains kept. It beings in sunlight. It moves from sea level to a mountain site. It obtains mounted right into a façade where wind tons and building pressure join the event.
The panes react.
If outdoors stress becomes more than the cavity stress, the panes bow inward. If outside stress decreases, they bow external. Lawrence Berkeley National Research laboratory has actually studied center-of-glass deflection in dual- and triple-pane IGUs, noting that outside temperature level variation can be stood for as a linear modification in center-of-glass space width across gauged temperature varieties.
That sounds academic. On site, it resembles a grievance email.
A client sees distortion. A task manager blames transportation. A distributor says “regular visual impact.” The architect requests a record. Nobody intends to confess that the system may have been under-designed from the initial quote.
For task job, this is why I prefer to specify the cavity and glass cosmetics via a regulated mass double polished Low-E shielding glass spec than get “dual glazing” as a generic line item.
Yes, they can.
Not everyday. Out every unit. However enough that severe IGU buyers must treat it as a design danger, not a fanatic mishap.
The center of the pane is normally the threat zone since that is where deflection is best. Side zones are restrained by the spacer and seal system; the center has flexibility to bow. In broad, high, or thin-glass units, that activity can end up being noticeable long prior to anyone gauges it.
This is where people get misleaded. They assume contact suggests catastrophic damage. It normally does not start there. It begins with optical distortion, short-lived disturbance patterns, Low-E finishing risk, or facility get in touch with during stress peaks.
And afterwards the blame game begins.

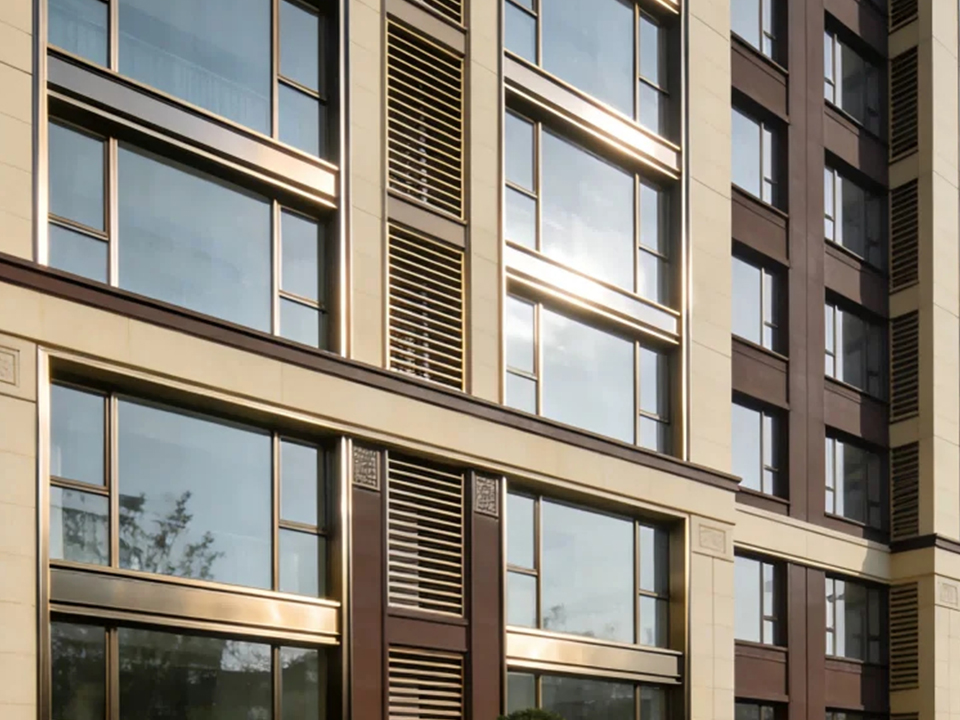

For façade tasks, I do not like casual tooth cavity choices. A skyscraper drape wall IGU requires pressure logic, not sales brochure logic. If the unit is going into a large altitude, a much safer conversation begins with a façade-specific build like curtain wall surface Low-E IGU for task exterior use, where glass density, cavity size, coating position, wind tons, and sealer option are treated as one system.
Tiny tooth cavities sell.
They decrease thickness. They can aid fit existing frames. They may look much easier in a procurement sheet. Yet a limited cavity can become a physical catch when the panes bow internal.
A 6 mm dental caries offers far much less breathing space than a 12 mm or 16 mm tooth cavity. That does not imply larger is constantly much better; thermal efficiency has its own contour, and gas convection enters into the calculation. But if the panes are large, slim, or exposed to high pressure activity, a narrow spacer can become the cheapest costly mistake on duty.
Here is the industry reality: the cost space in between a safer IGU cosmetics and a risky one frequently looks small prior to setup and huge after grievance handling.
Low-E finishings make this even worse emotionally. If panes touch, the purchaser does not just see a strange rainbow. They worry about covering abrasion, long-term seal stress and anxiety, and whether the system ought to be changed. For personalized procurement, particularly where dimensions vary throughout a project, I would certainly push purchasers towards a regulated custom dual glazed IGU develop instead of allowing a home window fabricator improvise tooth cavity and pane density after tender.
Some IGU glass bowing is regular. I understand that solution frustrates people, but it holds true.
A covered insulating glass system will react to barometric stress, temperature level, wind load, and tooth cavity gas actions. The question is not whether it relocates. The question is whether the activity surpasses aesthetic, thermal, layer, or resilience resistance.
The United State Department of Power mentions that warmth gain and warmth loss with windows are responsible for 25%– 30% of residential home heating and cooling down power use, which is why IGU actions is not an aesthetic side concern in performance glazing.
And LBNL’s service deflected IGUs makes the factor sharper: deflection changes gap area, and gap area influences U-factor actions, specifically when the made dental caries is currently near a delicate variety.
So when someone claims, “It is just aesthetic,” I get questionable.
Possibly it is just visual. Possibly it is not. If the facility gap is falling down under normal website conditions, the unit has moved from aesthetics into efficiency and resilience area.
| Variable | Low-Risk Direction | Risky Direction | Why It Issues |
|---|---|---|---|
| Glass size | Smaller pane location | Huge extra-large lites | Larger panels disperse even more at facility |
| Glass density | Thicker, properly calculated lites | Thin glass utilized to cut cost or weight | Thin panes bow even more under pressure |
| Spacer size | Ample dental caries, usually 12 mm+ depending on design | Narrow tooth cavity with no stress allowance | Less clearance prior to pane call |
| Altitude distinction | Factory and website problems considered | Sea-level manufacture, high-altitude installment | Pressure mismatch can pull panes inward or outside |
| Temperature exposure | Regulated storage and climate-aware layout | Direct sun, dark coverings, thermal shock threat | Gas expansion/contraction modifications tooth cavity behavior |
| Gas fill | Effectively matched argon/krypton/air technique | Blind gas choice without tooth cavity reasoning | Gas habits affects pressure and thermal performance |
| Coating setting | Low-E surface area protected by appropriate develop | Coating subjected to call risk | Get in touch with can threaten optical and covering quality |
| Edge seal | Solid PIB + secondary seal system | Weak side system or bad manufacture control | Seal integrity controls long-lasting dental caries behavior |
I would certainly include one more variable that hardly ever appears in sales copy: honesty.
A supplier who will go over stress deflection in protecting glass before you pay deserves greater than a provider that only sends out glossy U-value cases.
Ultra-clear glass does not conceal much.
Low-iron glass reduces the green color of typical soda-lime glass, which is why developers like it for premium façades, display rooms, rental properties, glass rail zones, and retail frontages. Yet that quality likewise makes distortion simpler to notice. When IGU pane deflection shows up, low-iron glass can make the complaint visually sharper since the visitor is already expecting near-perfect transparency.
That does not mean low-iron glass is dangerous by itself. It suggests the construct has to respect optics.
If the project uses large, high-visibility panels, I would link the glass option to a genuine IGU computation as opposed to treating it as design. For premium visual job, mass custom-size ultra-clear low-iron glass need to be coupled with the ideal spacer depth, glass density, and Low-E finish position.
Otherwise, the customer spends for clearness and receives an amplified defect.
Some customers assume laminated glass fixes deflection.
It does not.
Laminated glass can boost safety, post-breakage habits, acoustic control, and safety and security performance. PVB interlayers, frequently polyvinyl butyral, help bind broken glass fragments after effect. That matters in doors, overhead glazing, hurricane-prone regions, balustrades, institutions, business façades, and public gain access to areas.
Yet laminated glass is still glass. It still bends. The cosmetics may be stiffer relying on density, interlayer behavior, temperature level, and tons duration, but you can not make use of lamination as a reason to overlook tooth cavity design.
For safety-driven IGU tasks, I would certainly specify laminated components via a specialized PVB laminated glass safety supply course and then determine the IGU cavity individually. Shatterproof glass and tooth cavity clearance belong, yet they are not the very same decision.
I would certainly not approve a severe IGU order until someone solutions these questions in writing:
What is the glass thickness on each lite?
What is the spacer width?
What is the dental caries gas?
What is the manufacturing altitude and installment altitude?
What is the anticipated wind lots?
What is the pane size?
What is the Low-E coating surface setting?
What requirement is being used for glass toughness and IGU longevity?
Exist stress equalization steps for high-altitude shipment or installment?
That last one issues. A device made near water level and set up at elevation can behave extremely in a different way from a system made and mounted under similar barometric conditions. The gas trapped inside the dental caries does not care about the purchase order. It adheres to physics.
For basic business and domestic procurement, the most safe beginning factor is not “provide me dual glazing.” It is a develop sheet. That is why an item course like custom-made double glazed IGU mass supply is less complicated to safeguard: it allows the purchaser specify dimension, thickness, dental caries, coating, and job usage prior to construction.
I have a blunt sight on this: if the panes touch, the project team should not act stunned.
Large sealed tooth cavities, thin glass, pressure modification, and slim spacer bars are not brand-new explorations. LBNL’s 2023 thin-glass triple-pane support goes over load resistance for soda-lime glass densities from 0.7 mm to 1.8 mm and deals with maximum center-of-glass side deflection as a significant consideration in glass option.
That is not odd science. That is procurement health.
However the industry often sells IGUs by thickness, finishing name, and price per square meter. The purchaser sees “6 +12 A +6 Low-E argon.” The sales group sees margin. The exterior specialist sees a future frustration.
The panes may never touch. Yet if they do, the failing was generally invited earlier by unclear requirements.
Yes, IGU panes can deflect sufficient to touch each other when stress differential, temperature level modification, elevation variation, slim spacer size, huge pane size, or slim glass thickness decreases the center dental caries void until both panes satisfy. This call typically looks like round rainbow-like Newton rings near the facility of the system.
The danger is higher in oversized dual glazing, thin triple glazing, narrow cavities, and devices delivered from one elevation to one more. It is not constantly a production problem, yet it is always a specification issue worth checking out.
Protected Glass Device Deflection is the internal or outside flexing of IGU glass panes triggered by pressure imbalance between the secured dental caries and the outdoors atmosphere. Temperature, barometric stress, wind lots, gas fill, altitude, glass thickness, spacer width, and pane size all influence just how much the glass relocations.
A covered IGU acts like an adaptable stress vessel. When the outside setting adjustments, the entraped gas tries to equalize forcibly the glass to bow.
Newton rings are colored round or semi-circular disturbance patterns that can appear when two IGU panes come exceptionally close or physically touch near the center of the unit. They are frequently an indication of inadequate tooth cavity clearance, high pressure differential, narrow spacer width, or too much pane deflection.
Not every visual distortion is Newton rings. But if the pattern is main, round, and rainbow-like, pane call ought to be considered.
IGU pane deflection can range from visually minor acquiescing enough center movement for panes to touch, depending upon glass dimension, density, dental caries width, wind tons, elevation, temperature, and gas stress. There is no universal secure deflection number without determining the exact IGU develop and installation environment.
That is why accountable distributors evaluate the full cosmetics instead of quoting only glass thickness and Low-E layer.
Thicker glass can minimize the danger of shielded glass panes touching since it normally increases rigidity and reduces center-of-glass deflection under pressure. Nonetheless, thickness alone does not fix bad spacer option, elevation inequality, large pane measurements, weak edge layout, or severe temperature level and wind exposure.
A far better style makes use of glass thickness, tooth cavity width, spacer system, gas fill, and website pressure problems together.
IGU pane deflection may end up being a guarantee problem if it goes beyond agreed visual quality restrictions, triggers long-term optical distortion, damages coatings, brings about seal anxiety, or reveals that the provided unit does not match the accepted specification. Without clear task requirements, disagreements become harder and slower.
The most effective warranty is not a paragraph after failure. It is a clear specification before production.
An IGU is not simply two panes and a spacer.
It is a sealed pressure system with optics, chemistry, technicians, and climate all drawing on the very same product. When buyers overlook Shielded Glass Unit Deflection, they wager with callbacks, façade problems, layer threat, and costly substitutes.
My advice is simple: prior to you order, require the build information. Ask for glass density, spacer width, cavity gas, Low-E position, altitude assumptions, and job lots problems. If the provider can not discuss pressure deflection in insulated glass without hiding behind “typical resistance,” discover a better distributor.
For project-specific sizing, Low-E arrangement, façade usage, safety glass, or large customized IGU production, begin with a controlled requirements with dual glazed IGU personalized build bulk supply and make the physics noticeable prior to the glass is made.
